Specifications

Incredibly Low Price

A New Formula and a New Structure!
Making an Incredibly Low Price a Reality

Tein Street Advance Z - Nissan 300ZX/Fairlady Z Z32

About the Sealed Structure

The top end of the shell pipe is narrowed, oil and gas are injected, and the whole unit is sealed by crimping the metal.

This new approach massively shortens the production process. As a result, we have succeeded in vastly cutting production cost.

Partial Production Process of STREET ADVANCE Z

Tein Street Advance Z - Nissan 300ZX/Fairlady Z Z32

Thread-Type Ride Height Adjustment

The ride height can be adjusted by moving the lower spring seat up or down.
Characteristic of this system are its simple structure and ease of use.

Tein Street Advance Z - Nissan 300ZX/Fairlady Z Z32

Twin-Tube System

Compared to the regular mono-tube system, twin-tube attains longer strokes with a smaller repulsive force, resulting in high ride comfort.

Roads may have all sorts of surface conditions. This calls for shock absorbers with ample stroke, that operate smoothly.

Thanks to flexible strokes, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speed.

Use OE Mounts

STREET ADVANCE Z uses the vehicle's original upper mounts (not included in our product kit).

High Durability and Reliablility

Optimal Dust Boot

Thanks to its smooth compression and high durability, the dust boot guards the piston rod from damage, and keeps foreign material out of the shock absorber.
(Some vehicles use their OE dust boots)

No-Sag Spring

Cold formed with SAE9254 steel (minimum tensile strength 200 kgf/mm²), our springs are outstandingly sag-proof and boast extreme resiliency.

Superior rust protection is ensured with a highly durable powder coating that does not peel or flake. Our high-quality springs can be used without worries, in any conditions.

High-Performance Damper Oil

Exhibiting a stable viscosity in a broad temperature range, the high-performance damper oil sustains smooth strokes and a reliable damping force under all kinds of circumstances. It has excellent anti-foaming properties that protect it from cavitation (bubble-forming), and is resistant to overheating, so that it works noiselessly even on rough roads. The damper oil keeps up its superior performance long-term, because it is also resistant to deterioration over time.

Rust-Proofing

TEIN-Green Powder Coating

A bright TEIN-green powder paint is used on the shock absorber's shell case. Our powder coating technique produces an extremely strong and durable barrier. No harmful organic solvents are used, for minimal pollution.

Superior durability and corrosion resistance are achieved by TEIN's patented 2-Layer, 1-Bake powder coating method, which uses 2 layers of anti-rust paint on a blasted surface.
(Japanese patent number 4347712)

Special Surface Treatment 'ZTP Coating'

Our unique special surface treatment ZTP Coating makes the paint strong against chipping by flying gravel, and further enhances its corrosion resistance.

With zero claims for stuck parts due to rust in 500,000 shock absorbers, TEIN shock absorbers are amazingly rustproof. We're confident of customer satisfaction even in coastal areas or regions with heavy snowfall.

>>We're confident of TEIN shock absorbers' surface treatment!

Camber-Adjustable Insert-Type Strut with Off-Center Sleeve

* For some models

For some vehicle models with insert-type struts, eccentric sleeves are used to enable camber angle adjustments. By rotating the sleeves, camber angle can be adjusted to either negative or positive, from the standard position.

Damping Force Adjustable

STREET ADVANCE Z features 16-level damping force adjustment, for simultaneous adjustment of compression and rebound.

Modify ride comfort and handling according to your preference, changing the properties of the shock absorber with the adjustment dial.

The above are examples; actual settings vary according to the vehicle's circumstances.

Compatible with EDFC Series (Optional)

The EDFC Series offer easy damping force adjustment from the driver's seat.*

* Some vehicle models are not compatible

A motor instead of adjustment dial

Please note: the example in the photo is not STREET ADVANCE Z

EDFC Series Lineup

Automatic & Flexible Adjustment with New Jerk-Reactive Control for Enhanced Driving Experience

Individual Wheel Control

Jerk-Reactive Adjustment

Cornering-Reactive

Accel/Deceleration-Reactive

Speed-Reactive

Wireless Control

AI (Learning Function)

The Finest in Electronic Damping Force Controllers

Individual Wheel Control

Cornering-Reactive

Accel/Deceleration-Reactive

Speed-Reactive

Wireless Control

Model List

Tein Street Advance Z coilovers are available for the following Mitsubishi models:
CT9A Lancer Evolution VII - GSR52-91SS2
CT9A Lancer Evolution VIII - GSR52-91SS2
CT9A Lancer Evolution IX - GSR52-91SS2
CT9W Lancer Evolution Wagon - GSR52-91SS2

Mitsubishi - Tein

Tein S.Tech Springs - Mitsubishi Lancer Evolution X - SKE18-S3B00

Tein S.Tech Springs - Mitsubishi Lancer Evolution VII/VIII/IX - SKR84-S3B00

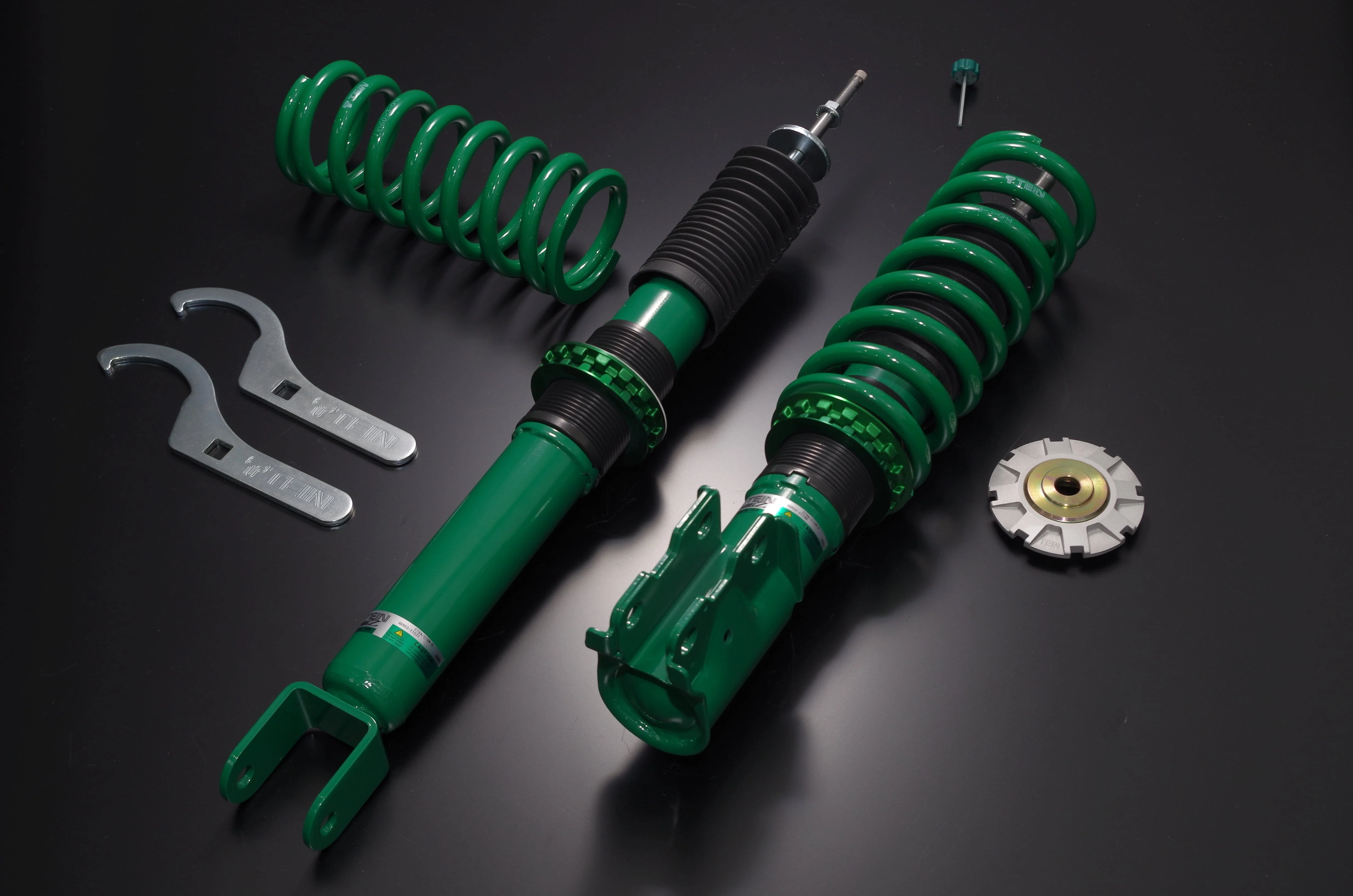

Tein Street Advance Z - Mitsubishi Lancer Evolution CT9A - GSR52-91SS2
